Designed for ultra-high windproof rolling shutters up to 8 meters.
Scope of application: width 5~10 meters, height <6~8 meters.
Width and height can not be at the same time the width of the fabric, otherwise the fabric has to be spliced (fabric is best to be spliced only once).

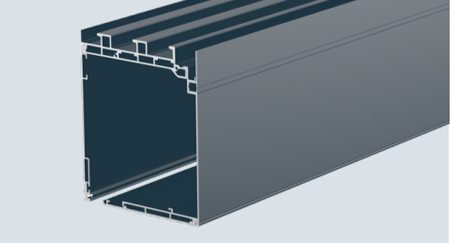

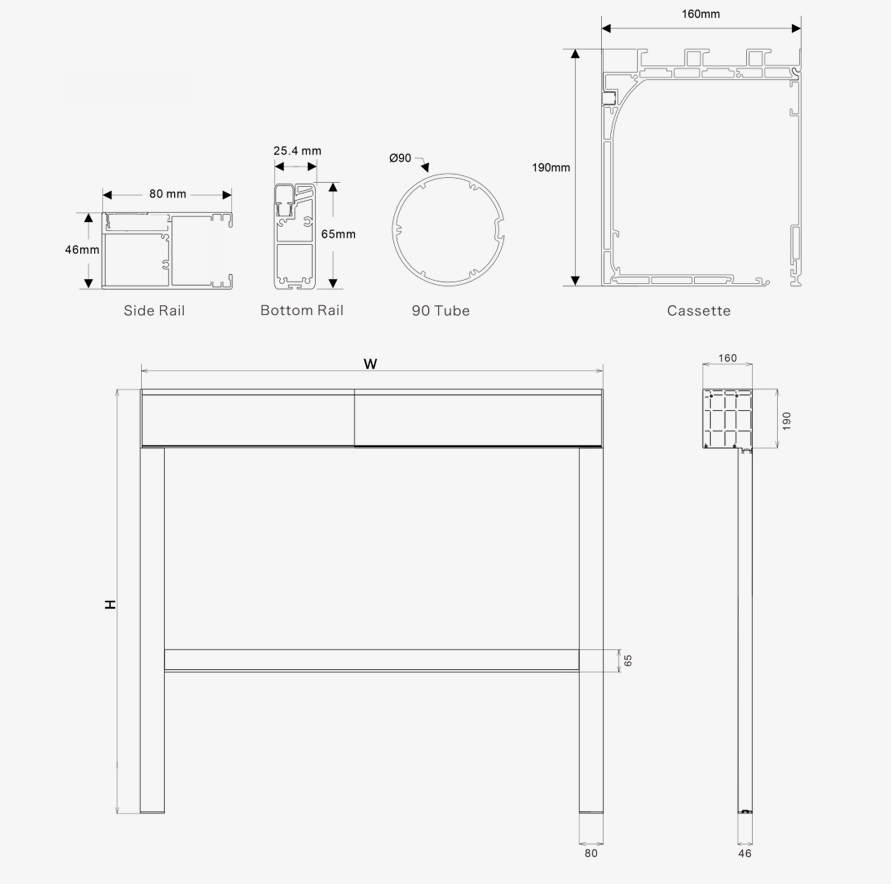

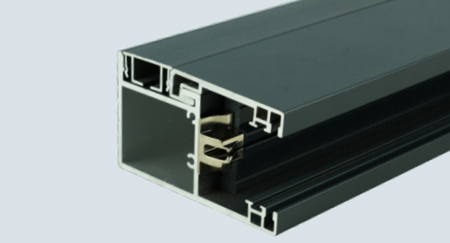

The hood size is 160X190mm. Use 90mm thick grooved tube, higher bending resistance.Three-piece side rail structure.

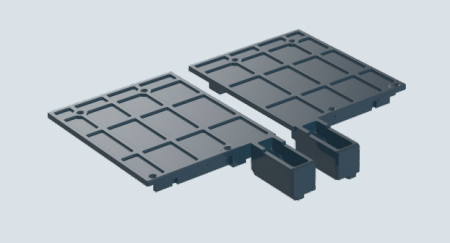

High quality steel plate end caps.
Simple use of high-quality fiberglass sunshine fabrics.
| The specification recommendation of WR160-190 ultra-high windproof roller blinds | |||||
| Width | 5m<width<10m | ||||
| Cat agory | Drive System | Aluminum Tube | Bottom Rail | Maximum Height | Remark |
| Motorized | 45 tubular motor 50NM | 90 fastening groove aluminum tube | WR120-140 heavy bottom rail | <8m | |
There are many different colors of fabrics can be chosen. We can send fabric book for your reference if necessary.
It is an upgraded product of the large - scale structure of WR120 - 140.
Theoretically, this system can reach a height of 10 meters and can be made to any width, which is a super wind - resistant rolling shutter system.
Limited by fabric production, generally for ultra - high installations, the width should not exceed 3 meters, and for ultra - wide installations, the height should not exceed 3.2 meters.
This system is used in large - scale occasions such as hotel lobbies and workshop partitions.
The cassette of this system is 160 - 190. It can be fixed by a top plate or top - mounting brackets. A 90mm diameter winding tube is used.
