Discover a comprehensive range of outdoor zip roller blinds and accessories designed for
performance and durability, tailored for your business needs.

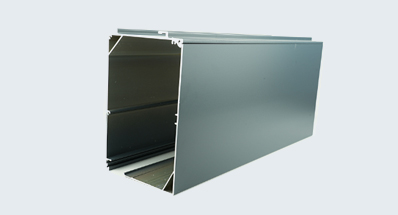

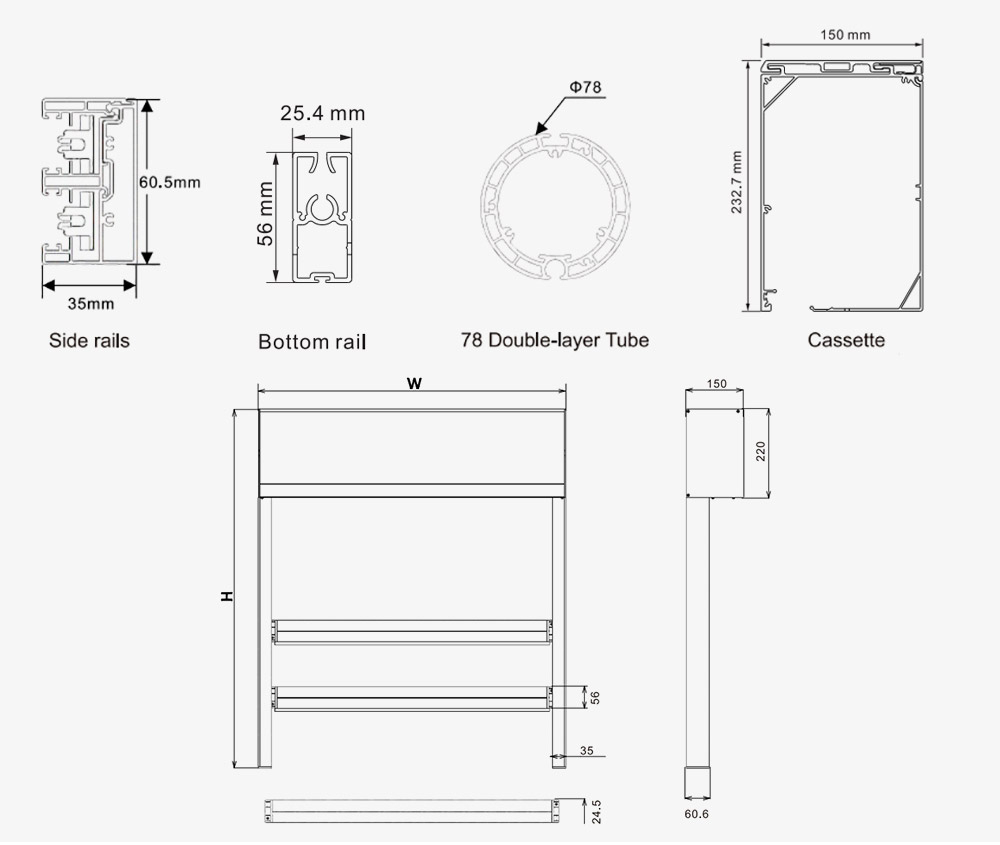

▪ 150*230mm cassette system.
▪ Side buckle type double rail side rail.

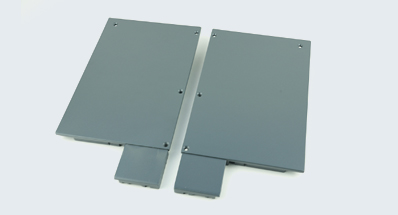

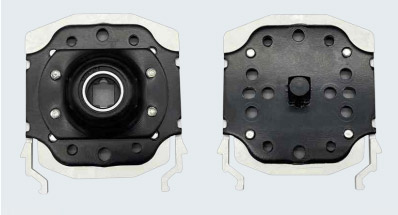

▪ High quality steel plate end cover.
▪ Small zipper guide, compact structure.

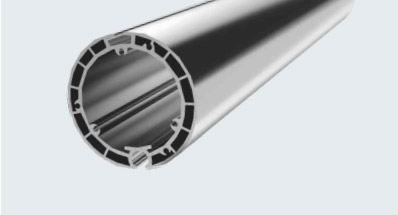

▪ Choose 78 double layer tube,the width can exceed 5 meters.
▪ Motorized system, for high-end engineering projects.

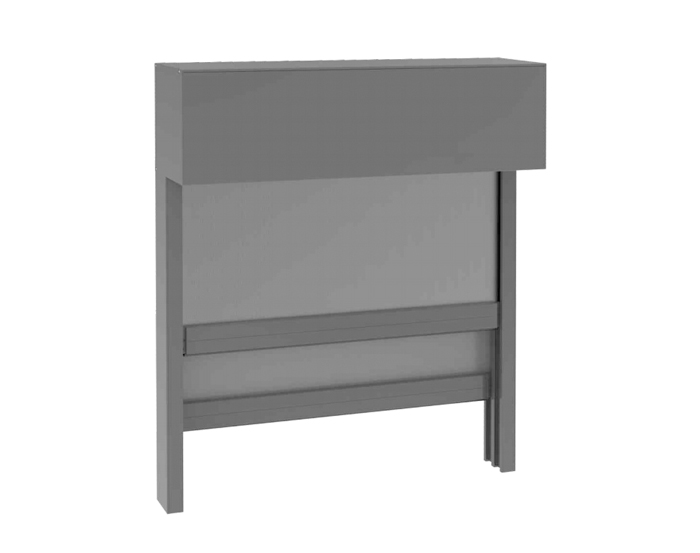

WR150-220 dual windproof roller blinds system
Electric and spring system can be selected to match 55/63/78 groove pipe, height up to 6 meters; Widely used in engineering projects.

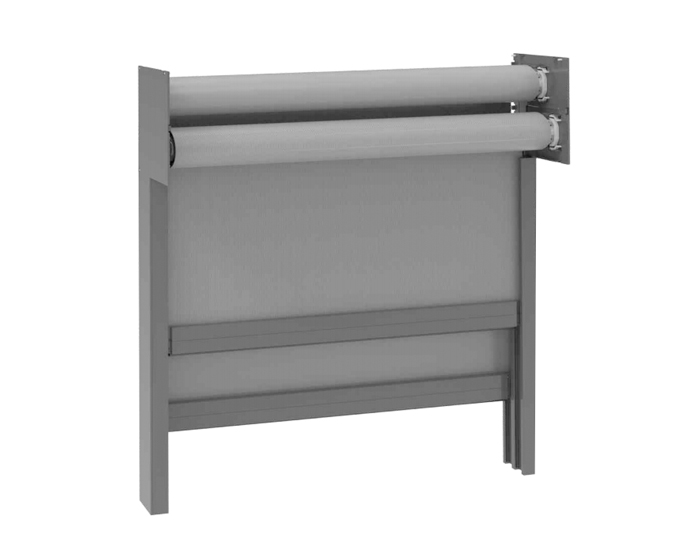

WR150-220 dual windproof roller blinds system(without cassette)
Electric and spring system can be selected to match 55/63/78 groove pipe, height up to 6 meters; Widely used in engineering projects.
| WR150-220 Double windproof roller blinds specifications recommended table | ||||||||||||||
| Width | Width <2.5m | 3m<width<4m | 4m<width<6m | Remark | Various drive systems can make minimum width | |||||||||
| Categ-ory | DriveSystem | Aluminum profile | Bottom rail | Maximum height | Categ-ory | Aluminum profile | Bottom rail | Maximum height | Categ-ory | Aluminum profile | Bottom rail | Maximum height | ||
| Moto-rized | AM35-10/17.10 NM38Tubular | 55mm tube | Heavy bottom rai | 7M | 20NM~30NM 45tubullar motor 20NM~30NM | 63mm tube | Heavy bottom rail | 6M | 20NM~30NM 45tubular motor 20NM~30NM | 80mm tube | Heavy weigh't bottomrail Easy to pull down beam | 5M | 35motor:0.76M | |
| 63mm tube | 6M | 70mm tube | 5M | |||||||||||
| 20NM~30NM 45 tubular | 63mm tube | 6M | 78Double-layer tube | 4M | 78Double-layer tube | 4M | 45motor:0.8M | |||||||
| 70mm tube | 5M | |||||||||||||
| 78Double-layer tube | 80mm tube | 80mm tube | ||||||||||||
| 80mm tube | 4M | |||||||||||||
| Hand push | T1001 Spring System | 63mm tube | Easy pull bottom rail | T1001 Spring System | 63mm tube | Easy pull bottom rail | Recommended width less than 5 meters, height less than 2.2 meters, If you're too high, you need a retractor or a putter | 1.2M | ||||||
| 70mm tube | 70mm tube | |||||||||||||
| 78Double-layer tube | 78Double-layer tube | |||||||||||||
There are many different colors of fabrics can be chosen. We can send fabric book for your reference if necessary.
150*230mm cassette system.
Side buckle type double rail side rail.
High quality steel plate end cover.
Small zipper guide, compact structure.
Choose 78 double layer tube,the width can exceed 5 meters.
Motorized system, for high-end engineering projects.
