Discover a comprehensive range of outdoor zip roller blinds and accessories designed for
performance and durability, tailored for your business needs.

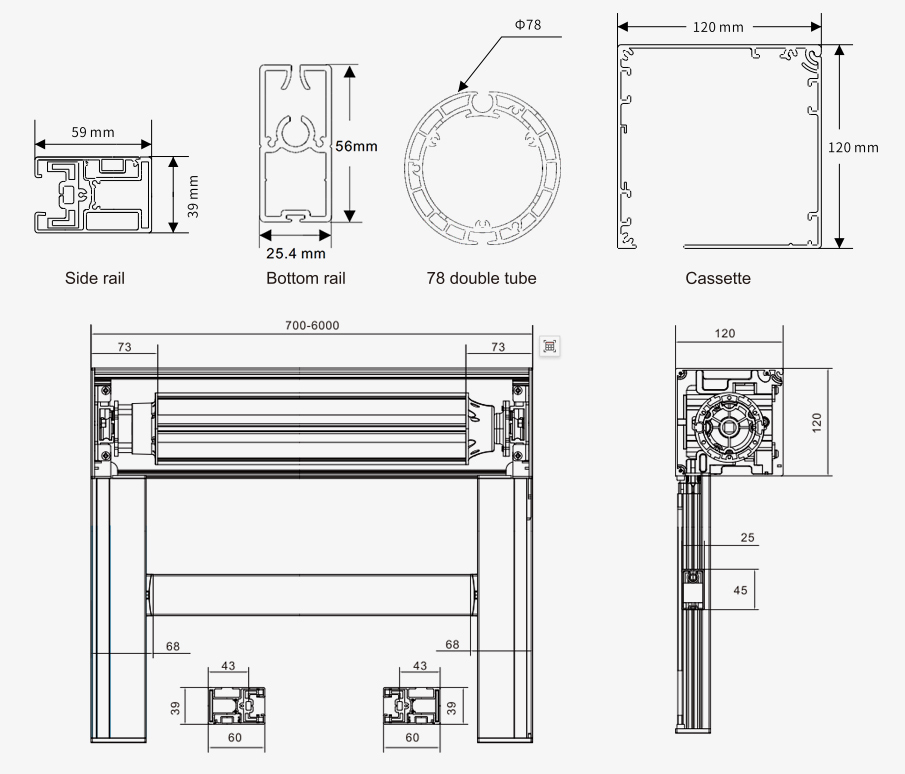

▪ 120*120mm cassette system;
▪ Smart balancer, windproof roller blinds last longer;
▪ External buckle side rail, excellent windproof performance;
▪ Double zipper guide for better strength;
▪ Ultra-thick 78 double-layer tube, windproof curtain up to 6 meters wide, using 63 aluminum tube, height up to 6 meters;
▪ Chain control, hand push, hand-cranking and motorized system to meet the differentneeds of customers;

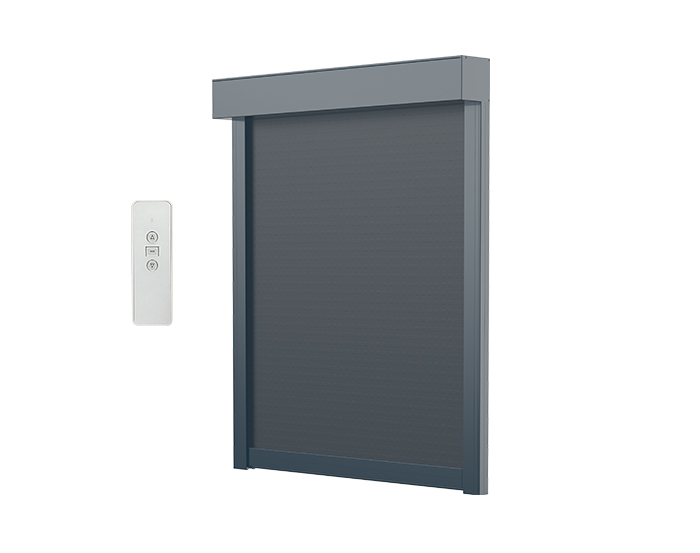

WR120 motorized windproof roller blinds
Width up to 6 meters, a variety of smart home system interface, widely used in the sun room, clubhouse, balcony and other places.
WR120 spring windproof roller blinds
The width can reach 4 meters, suitable for small and medium-sized, low height, no power supply places.
WR120 chain control windproof roller blinds
The width can be up to 2.5 meters, suitable for small Windows, high height, no power supply.
WR120 hand-crank windproof roller blinds
The width can be up to 2.5 meters, suitable for small businesses, high height, no power supply places.
WR120 Conventional Model
Features 2mm thick aluminum profiles for enhanced bending resistance.
WR120 Deluxe Model
Features 2mm thick aluminum profiles for enhanced bending resistance. The cassette includes an additional fabric guide strip.
WR120D
Features 2mm thick aluminum profiles for enhanced bending resistance. The cassette has an added fabric guide strip and an extra light strip slot.
| The specification recommendation of windproof roller blinds | ||||||||
| Height | With 63 tubes, the maximum height an xceed 5 meters, but the width should not be too wide, otherwise the tube will be bent; with 78 tubes, it is recommended that the single-layer tube be less than 5 meters in width and less than 3.5 metersin heiht wih 78 double-layer tubes, the width can be up to 6 meters and less than 3 metes in height | Various drive systems can be made | ||||||
| Width | Width < 3m | width | Remarks | |||||
| Categ-ory | DriveSystem | Alum-inum tube | Bottomrail | DriveSystem | Aluminum tube | Bottomrail | ||
| Moto-rized | 35 tubular motor AM35-10/17,10NM | 63mm tube | Heavyweight bottom rail | 35 tubular motor 10NM | 78mm tube | Heavyweight bottom rail | 0.700M | |
| 45 tubular motor 20NM | 63mm tube | Heavyweight bottom rail | 45 tubular motor 20NM | 78mm tubes (single-layer tube:up to 5meters;double-layer tube up to 6 meters). | Heavyweight bottom rail | When using 90 tubes, it isrecommended to use 150 shields;AOKAM45-20/17 motor can be equipped with 15NM,30NM, and 20NM as standard. | 0.700M | |
| Hand push | TI001 Spring locking torsion spring head | 63mm tube | Easy to pull | TI001 Spring locking torsion spring head | 63mm tube | Easy to pull | 0.92M | |
| Chain control | WR-120 63 CLUTCH | 63mm tube | 0.4M | |||||
| Hand operated | Turbo transmission with fixed plate B09-C | 63mm tube | Heavyweight bottom rail | Turbo transmission with fixed plate B09-C | 63mm tube | Heavyweight bottom rail | The recommended width is less than 4m | 0.35M |
There are many different colors of fabrics can be chosen. We can send fabric book for your reference if necessary.
120*120mm cassette system;
Smart balancer, windproof roller blinds last longer;
External buckle side rail, excellent windproof performance;
Double zipper guide for better strength;
Ultra-thick 78 double-layer tube, windproof curtain up to 6 meters wide, using 63 aluminum tube, height up to 6 meters;
Chain control, hand push, hand-cranking and motorized system to meet the different needs of customers;
