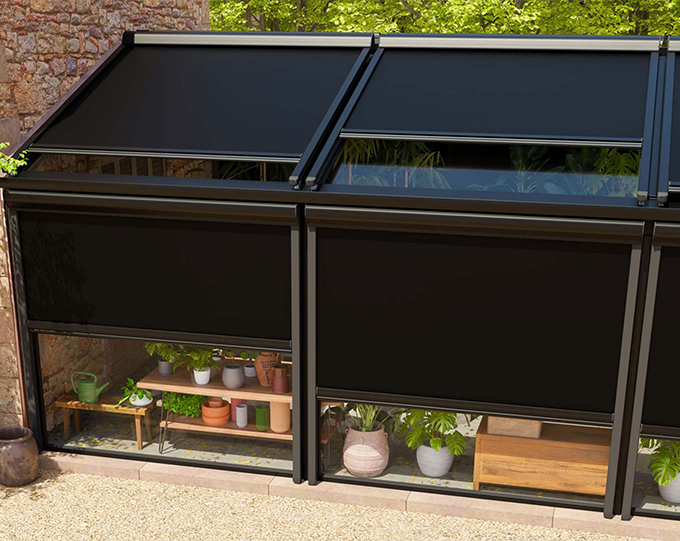

Discover a comprehensive range of outdoor zip roller blinds and accessories designed for
performance and durability, tailored for your business needs.

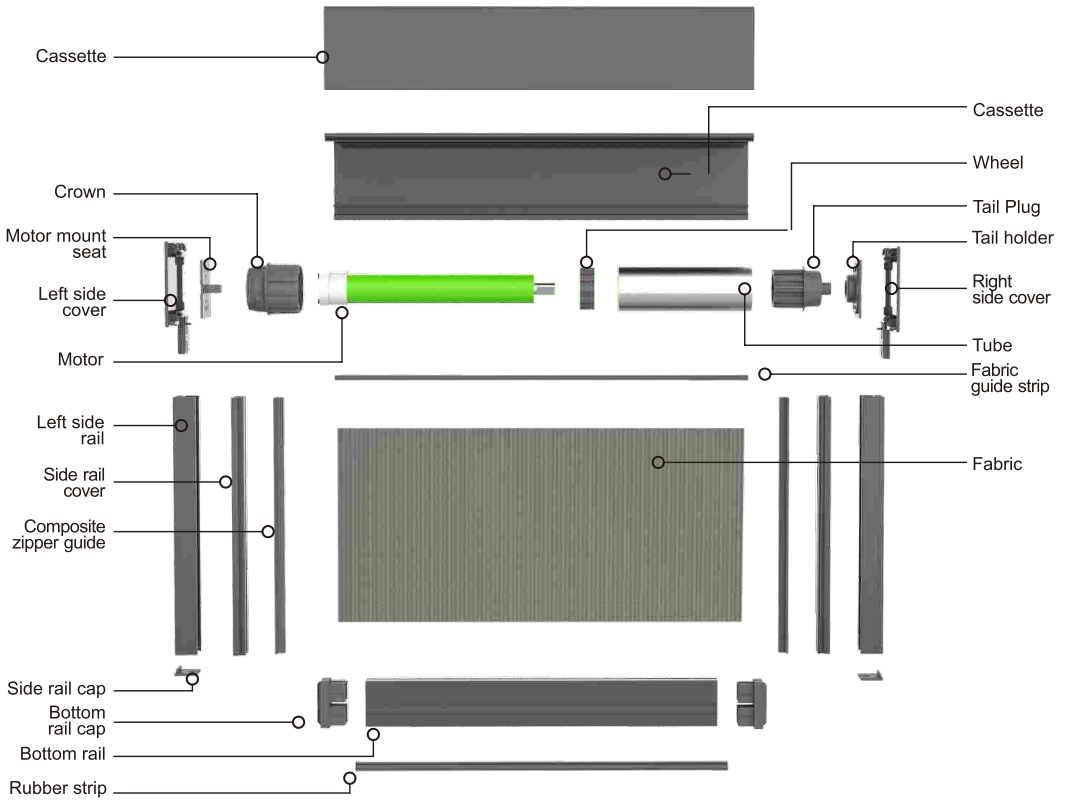

There are two kinds of operation system for your choice, motorized and hand push system.

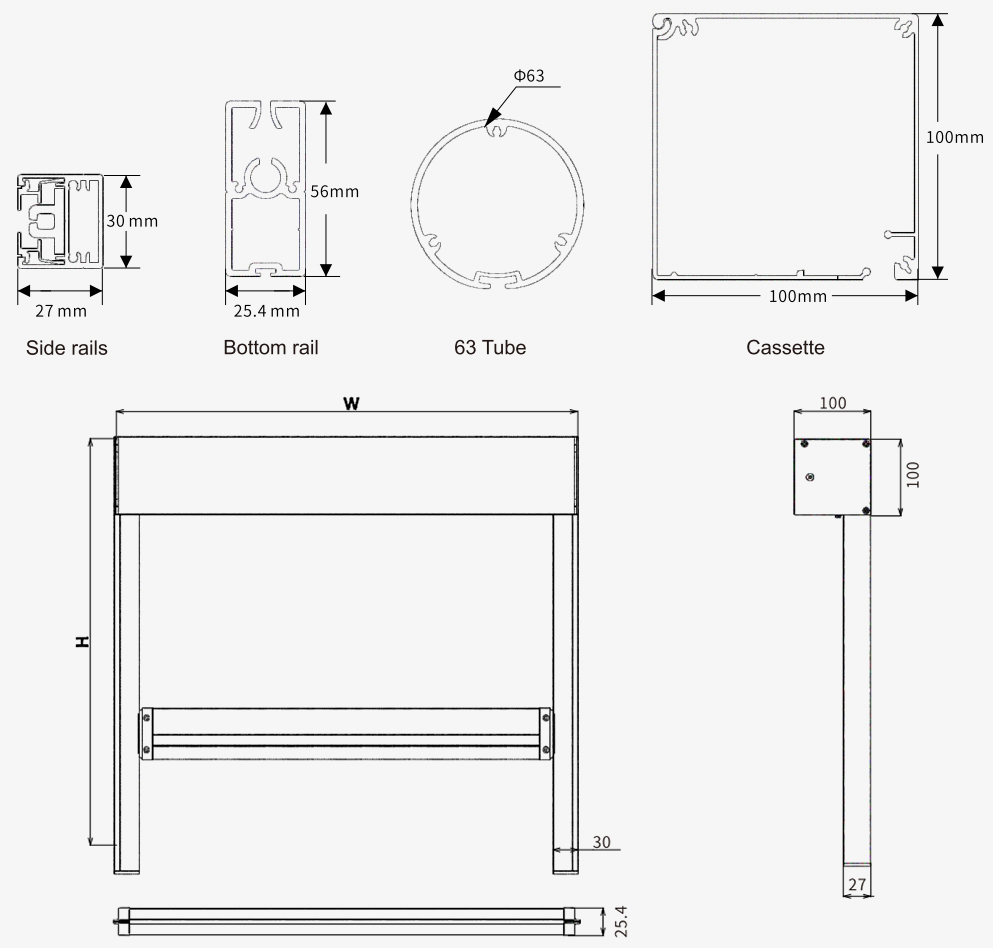

▪ 100*100mm cassette system, small and delicate.

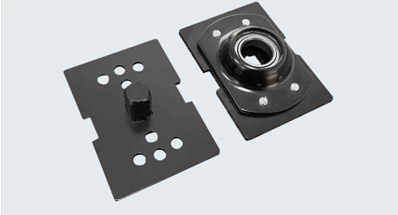

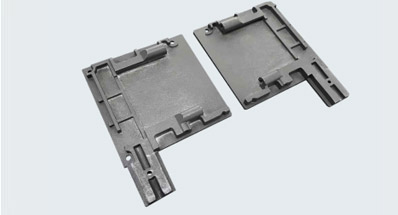

▪ High quality steel plate end cover,the whole steel plate installation base, easy to install.

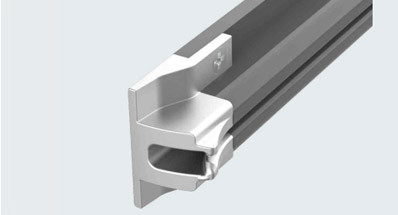

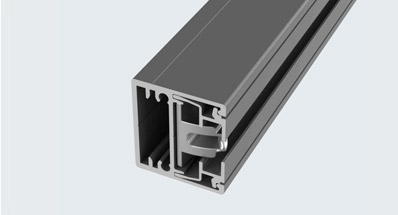

▪ 27*30mm mini side rail, small and delicate, especially suitable for office use.
▪ Small zipper guide, compact structure.

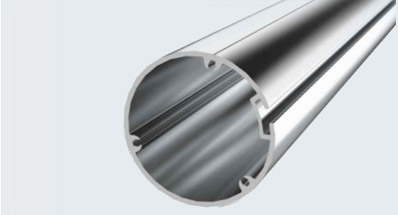

▪ Choose super-thick 63 aluminum tube, windproof curtain up to 4 meters wide, height less than 3.8 meters.

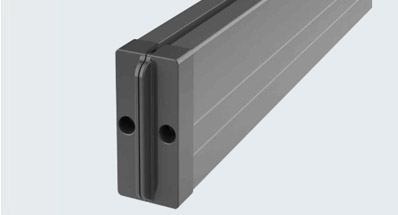

▪ Optional overweight bottom rail, double counterweight, more smooth.
▪ Motorized system, mainly used for indoor.

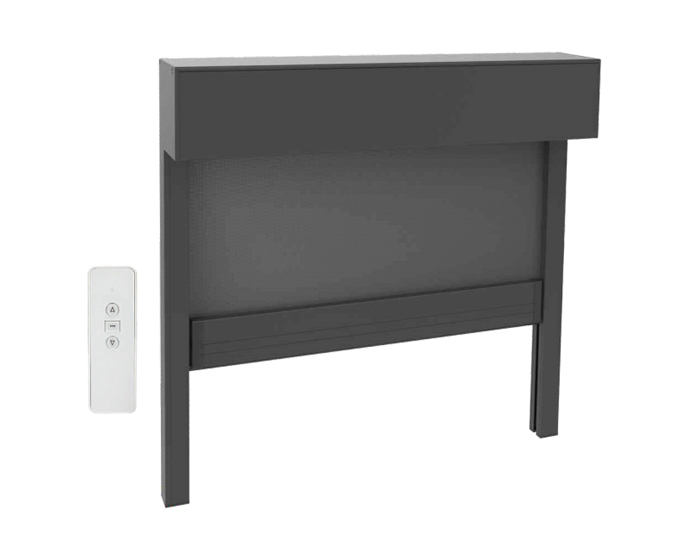

C28-WR100B motorized windproof roller blinds system
Suitable for both indoor and outdoor, 63 thick groove pipe can be selected, and the width can reach 4 meters; Height is less than 3.8 meters, widely used in engineering projects.

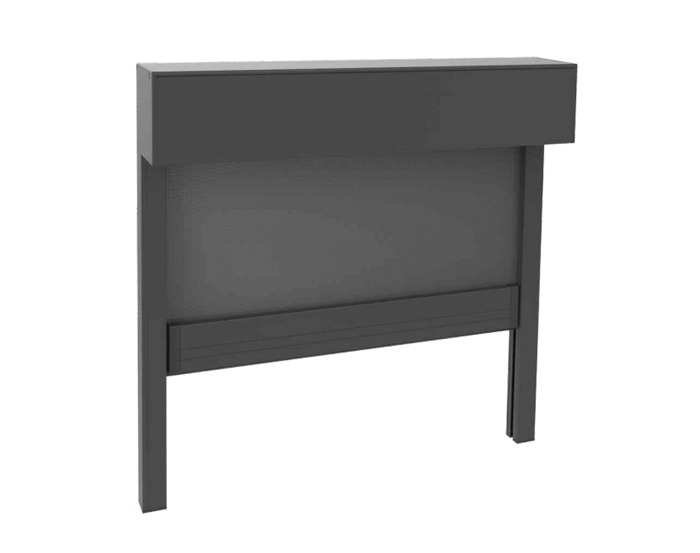

C28-WR100B spring windproof roller blinds system
Suitable for both indoor and outdoor, 63 thick groove pipe can be selected, and the width can reach 4 meters; Height is less than 3.8 meters, widely used in engineering projects.
| C28-WR100B Windproof shutter specifications recommended table | ||||||||||
| Width | Width<3m | 3m<Width<4m | Various drive systems can make minimum width | |||||||
| Categ-ory | DriveSystem | Aluminum Profile | bottom Rail | Maximum height | DriveSystem | Aluminum profile | Bottom rail | Remark | ||
| Moto-rized | AM35-10/17.10NM38Tubular | 55tube | C31 HeavyDuty BottomRail | 4.8m | 45 tubular motor 20NM~30NM | 63Tube | C31C3 heavy duty bottom rail | 3.8m | 35motor:0.76M | |
| 63tube | 3.8m | |||||||||
| 20NM~30NM 45 tubular | 63tube | 3.8m | 3.0m | Width less than 3meters, can Choose 70 iron pipe | 45motor:0.8M | |||||
| Hand push | T1001 Spring System | 63tube | 2.5m | TI001 Spring system | 63Tube | 2.5m | 1.2M | |||
There are many different colors of fabrics can be chosen. We can send fabric book for your reference if necessary.
100*100mm cassette system, small and delicate.
High quality steel plate end cover,the whole steel plate installation base, easy to install.
27*30mm mini side rail, small and delicate, especially suitable for office use.
Small zipper guide, compact structure.
Choose super-thick 63 aluminum tube, windproof curtain up to 4 meters wide, height less than 3.8 meters.
Optional overweight bottom rail, double counterweight, more smooth.
Motorized system, mainly used for indoor.
